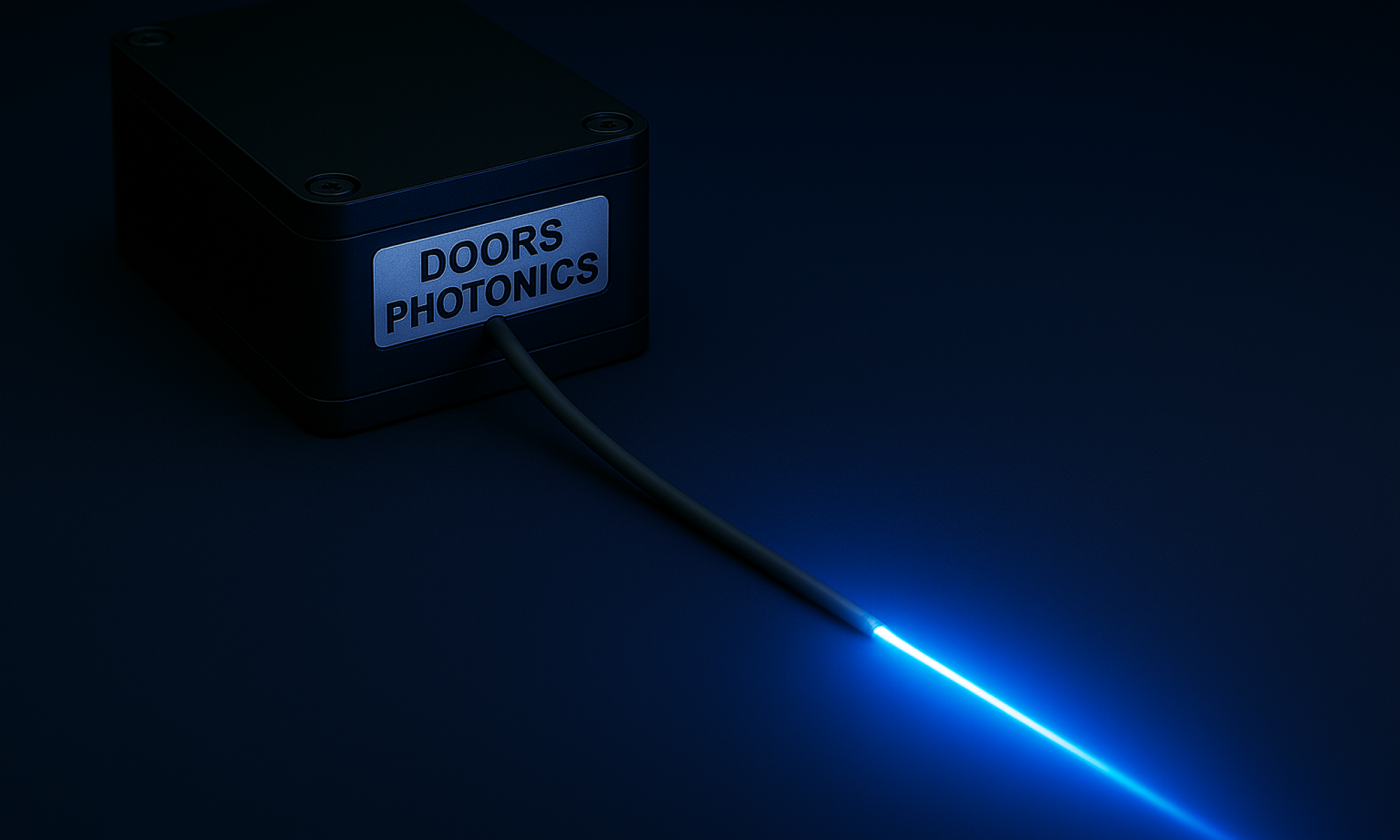

High-Precision Laser Array Module
- Integrated single or multi-wavelength laser array on glass chip
- Ultra-narrow linewidth (< 1 kHz)
- Low relative intensity noise (RIN < 150 dB/Hz after 4 MHz)
- Side-mode suppression ratio (SMSR > 50 dB)
- Wavelength range: C-Band, wavelength spacing 0.3–1 nm, accuracy ±0.05 nm
- Output power: 1 mW (typical)
- Fiber-coupled output: Hi1060 flex fiber, no connector
- Chip size: 2.5 × 1.5 cm²
- Available on chip or module format
